Automotive Switch ASW-17-201N

Short Description:

Product Detail

Product Tags



  1. Product Name:ASW-17-201N
  2. Rating:20A 12VDC;15A 250VAC
  3. Contact Resistance:50mΩ max
  4. Insulation Resistance:500VDC 100MΩ min
  5. Dielectric Strength:1500VAC 1Minute
  6. Operating Temperature:-25℃~+85℃
  7. Electrical Life:10000 Cycles
  8. Circuitry trait:ON-OFF;ON-ON
  9. Switch pin:DPST 4P;DPDT 6P
  10. Certification system:TUV、UL、IOS9001:2015、CE、ENECandOther

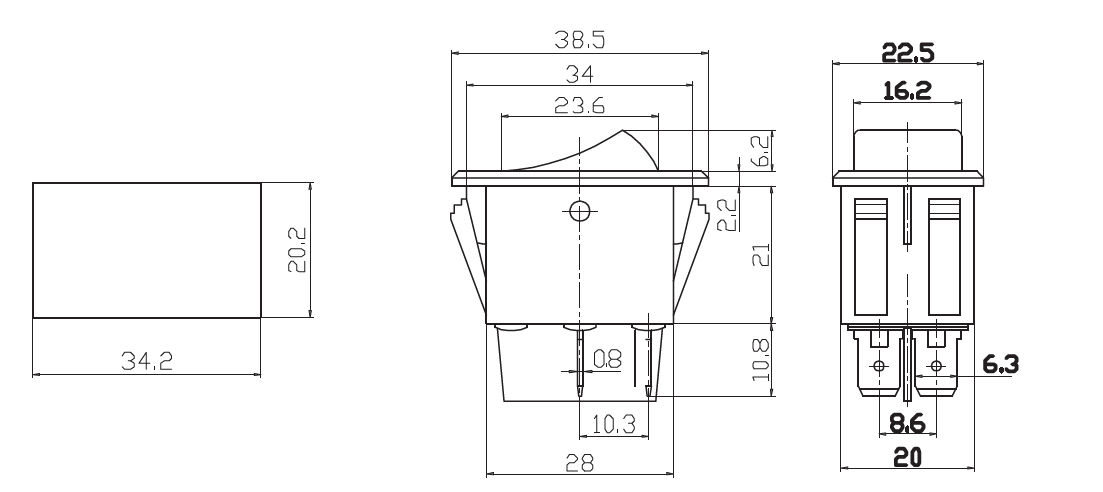

Product details and dimensions




Certification system

The company has passed iso9001:2015 international quality management technology system certification, a sound quality management system, strong technical force, advanced testing equipment, the main products have been UL, ENEC, TUV, KEMA, CE and other safety certification, the materials used in the products have passed the SGS test, to ensure the compliance with the European RoHS directive products.

4 5
